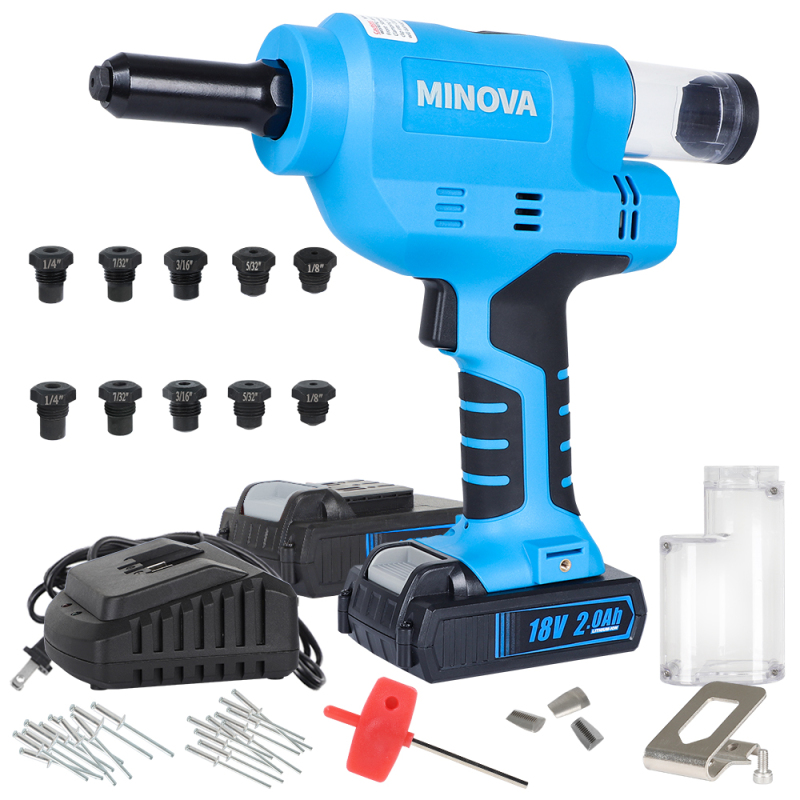

MINOVA 18V Brushless Rivet Gun KD-02X+ Battery Rivet Tool

0.0 (0)

$219.99

MINOVA KD-02X+ gives cordless solution that delivers fast, easy riveting while maintaining performance, durability, and size. 50% faster than other cordless rivet tools.
MINOVA Rivet Tools are with balanced, ergonomically handle and designed for easy of use and on-board nose piece storage.
MINOVA Rivet Guns is compatible with multiple size rivets including 1/8"(3.2mm), 5/32"(4.0mm), 3/16"(4.8mm), 7/32"(6.0mm), 1/4"(6.4mm) rivets, suitable for all materials rivets.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

MINOVA Rivet Tool

Model	KD-02D/KD-02DT	KD-02F Series	KD-02X+ Series	KD-04X Series
Power Source	Cordless	Cordless/Corded	Cordless	Cordless/Corded
Pulling Force	2700 lbf/12 KN	3600 lbf/16 KN	4500 lbf/20 KN	5400 lbf/24 KN
Rivet Sizes	3/32"(2.4mm) - 3/16"(5.0mm)	3/32"(2.4mm) -3/16"(5.0mm)	1/8"(3.2mm) - 1/4"(6.4mm)	M3 - M12, UNC6-32 ~ UNC3/8-16
Rivet Material	Aluminum, Stainless Steel	Aluminum, Stainless Steel	Aluminum, Stainless Steel	Aluminum, Stainless Steel
Stroke Length	0.98 inch / 25 mm	0.98 inch / 25 mm	0.98 inch / 25 mm	0.31 inch / 8 mm
Weight (without battery)	3.7 lb/1.68 kg	3.4 lb/1.65 kg	3.47 lb/1.57 kg	-
Length with Mandrel Collector	11.2 inch/285 mm	11.2 inch/285 mm	11.2 inch/285 mm	11.7 inch/298 mm
Height / Width / Length	9.5 /2.36 /11.2 inch 240 /60 /285 mm	8.94 /2.76 /11.2 inch 227 /70 /285 mm	8.94 /2.76 /11.2 inch 227 /70 /285 mm	10 /3.46 /11.7 inch 254 /88 /298 mm
Battery System	Built in	MINOVA 18V Platform	MINOVA 18V Platform	MINOVA 18V Platform
