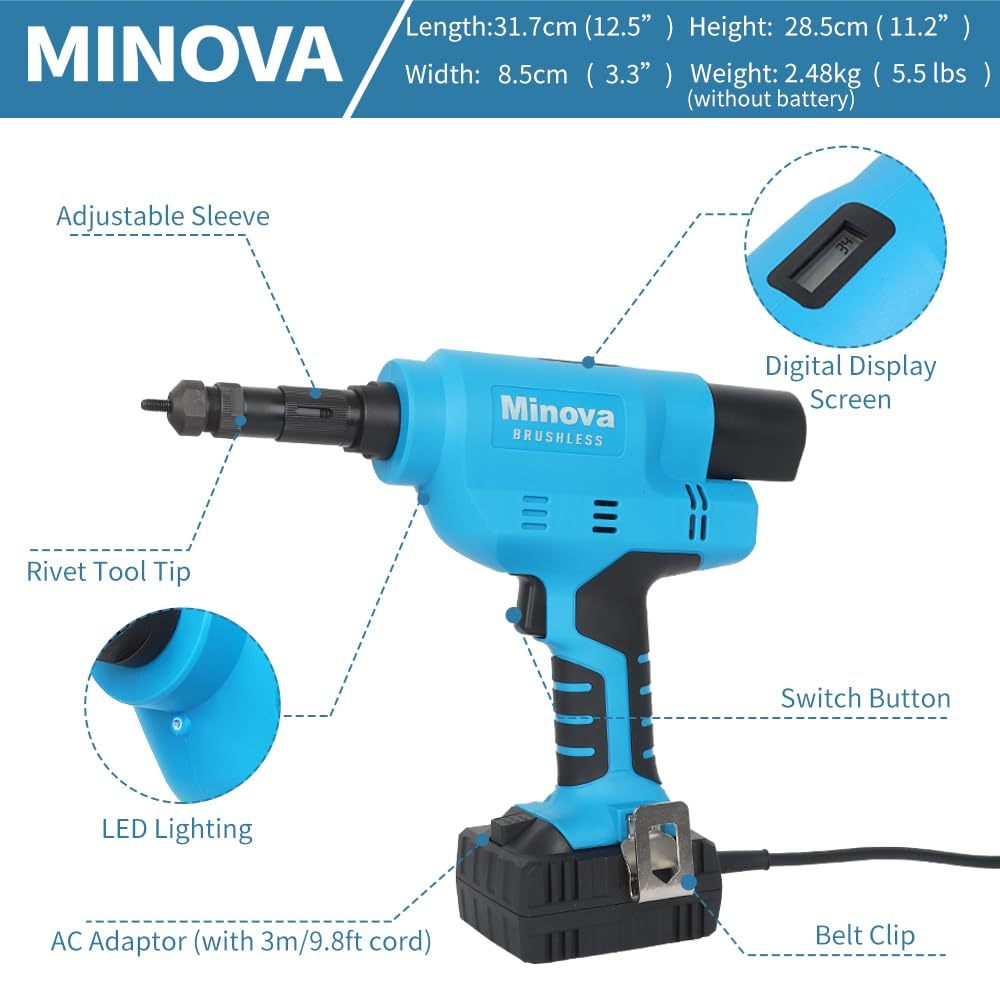

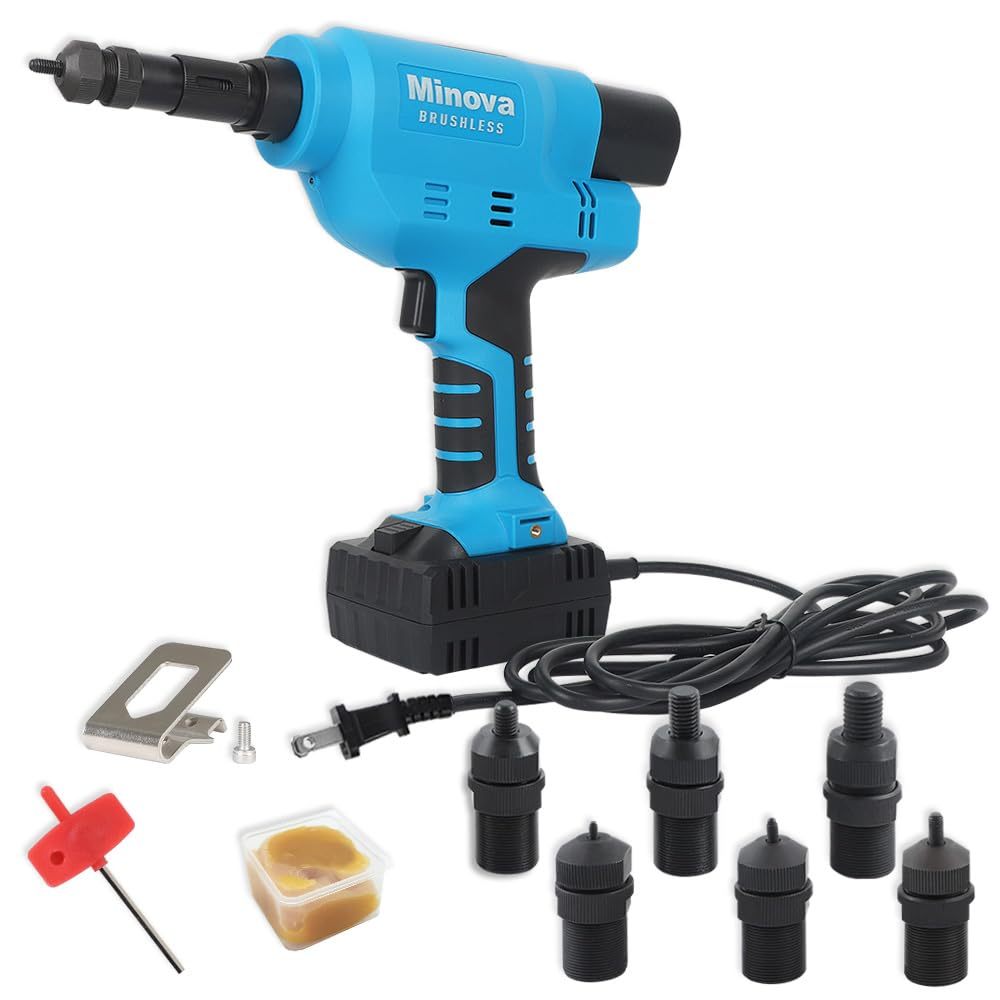

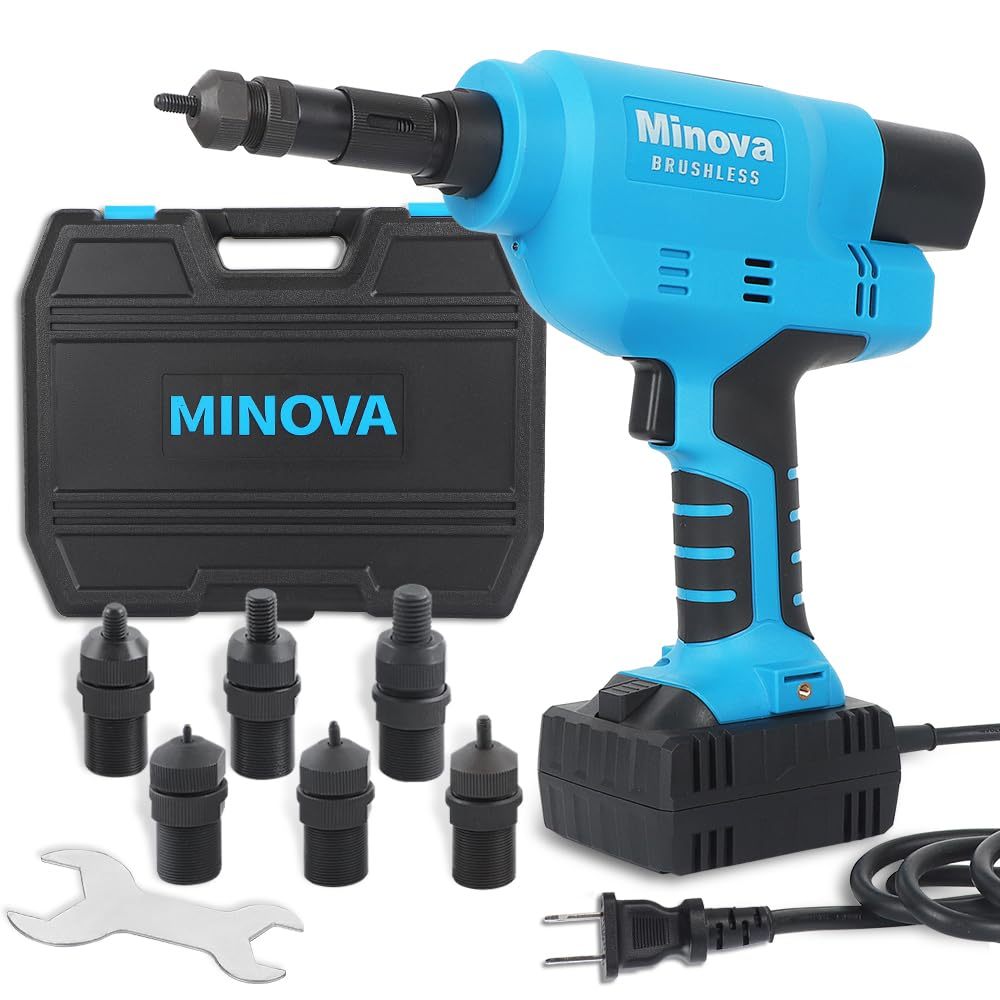

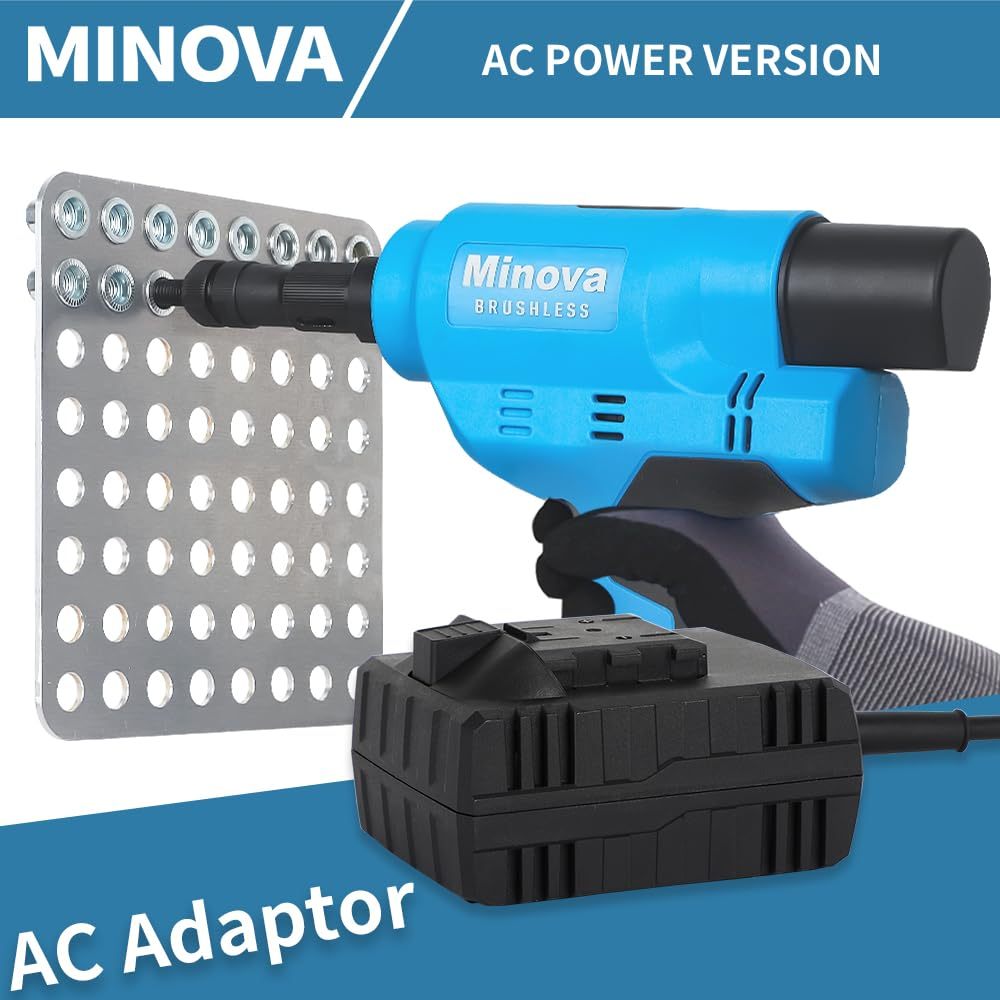

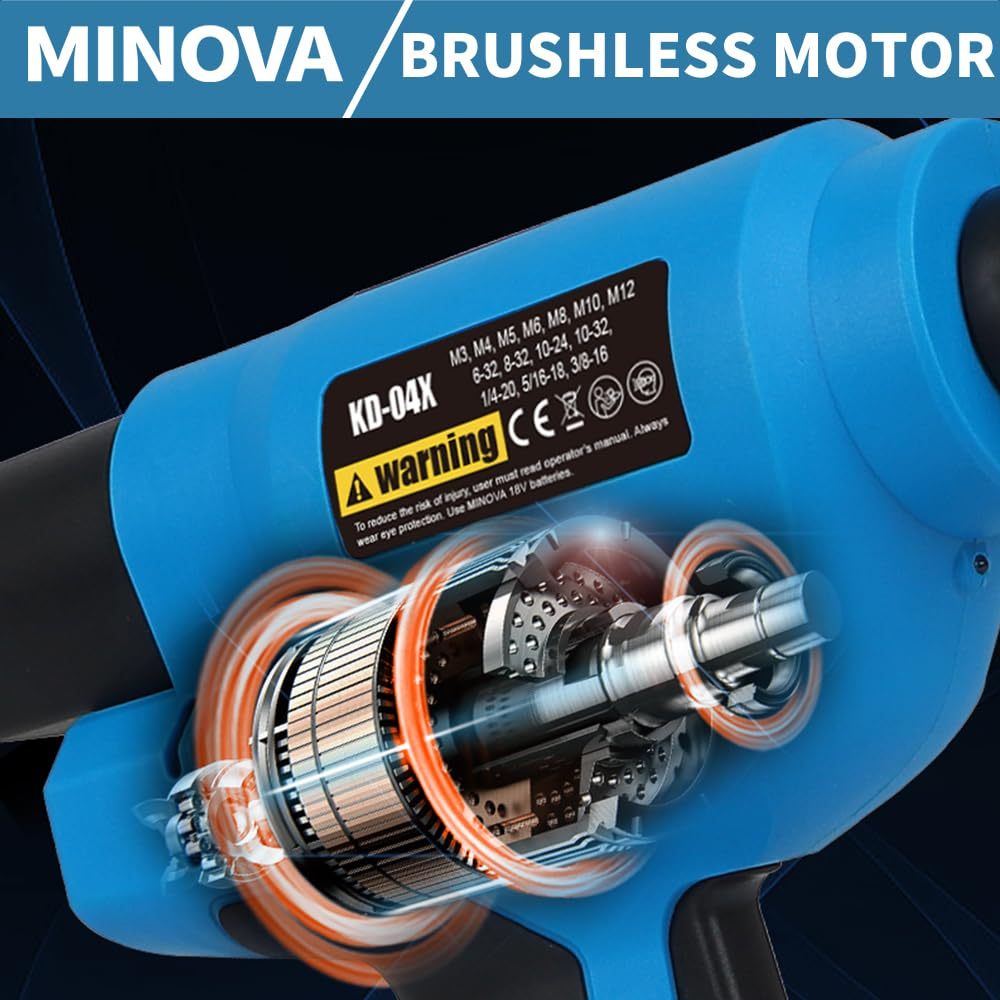

MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)

MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)

0.0 (0)
$299.00 $0.00
● MINOVA KD-04X is the first solution that delivers fast, easy riveting while maintaining performance, durability, and size.Faster 50% than other rivet nut tools.
● MINOVA Rivet Nut Tools are with balanced, ergonomically handle and designed for easy of use and on-board nose piece storage.
● MINOVA Rivet Nut Guns compatible with multiple size rivet nuts including M3 - M12, UNC6-32 ~ UNC3/8-16 rivet nuts.
● MINOVA Rivnut Tool is convenient to use , auto spin on /off and adjustable stroke.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    US
    CA
    AU
    DE
  • PLUG:
    US
    AU
    EU
Quantity:
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • MINOVA KD-04X Electric Brushless Rivet Nut Gun Set with Case (Corded)
  • Description



MINOVA Rivet Tool

Model

KD-02D/KD-02DT


KD-02F Series

KD-02X+ Series

KD-04X Series
Power Source
Cordless Cordless/Corded Cordless Cordless/Corded
Pulling Force
2700 lbf/12 KN 3600 lbf/16 KN 4500 lbf/20 KN 5400 lbf/24 KN
Rivet Sizes
3/32"(2.4mm)
- 3/16"(5.0mm)
3/32"(2.4mm)
-3/16"(5.0mm)
1/8"(3.2mm)
- 1/4"(6.4mm)
M3 - M12,
UNC6-32 ~ UNC3/8-16
Rivet Material
Aluminum,
Stainless Steel
Aluminum,
Stainless Steel
Aluminum,
Stainless Steel
Aluminum,
Stainless Steel
Stroke Length
0.98 inch / 25 mm 0.98 inch / 25 mm 0.98 inch / 25 mm 0.31 inch / 8 mm
Weight
(without battery)
3.7 lb/1.68 kg 3.4 lb/1.65 kg 3.47 lb/1.57 kg -
Length with
Mandrel Collector
11.2 inch/285 mm 11.2 inch/285 mm 11.2 inch/285 mm 11.7 inch/298 mm
Height / Width / Length 9.5 /2.36 /11.2 inch
240 /60 /285 mm
8.94 /2.76 /11.2 inch
227 /70 /285 mm
8.94 /2.76 /11.2 inch
227 /70 /285 mm
10 /3.46 /11.7 inch
254 /88 /298 mm
Battery System
Built in MINOVA 18V Platform MINOVA 18V Platform MINOVA 18V Platform
